Artificial Neural Network (ANN) - Regression
5 min
Tuesday, March 25, 2025
Rafiq Islam
March 25, 2025
Incomplete
Say we have a dataset like this
import torch
import numpy as np
import matplotlib.pyplot as plt
from mywebstyle import plot_style
plot_style('#f4f4f4')
np.random.seed(0)
n=100
center1 = [2, 2]
center2 = [0, -2]
stdv = 1.5
cluster1 = [
center1[0] + np.random.randn(n)*stdv, center1[1] + np.random.randn(n)*stdv
]
cluster2 = [
center2[0] + np.random.randn(n)*stdv, center2[1] + np.random.randn(n)*stdv
]
data_matrix = np.hstack((cluster1, cluster2)).T
data = torch.tensor(data_matrix).float()
labels = torch.tensor(
np.vstack((np.zeros((n,1)),(np.ones((n,1)))))
).float()
plt.scatter(
data[np.where(labels==0)[0],0],
data[np.where(labels==0)[0],1],
color='red',
label = 'class 1'
)
plt.scatter(
data[np.where(labels==1)[0],0],
data[np.where(labels==1)[0],1],
color='blue',
label = 'class 2'
)
plt.legend()
plt.xlabel('Feature 1')
plt.ylabel('Feature 2')
plt.show()

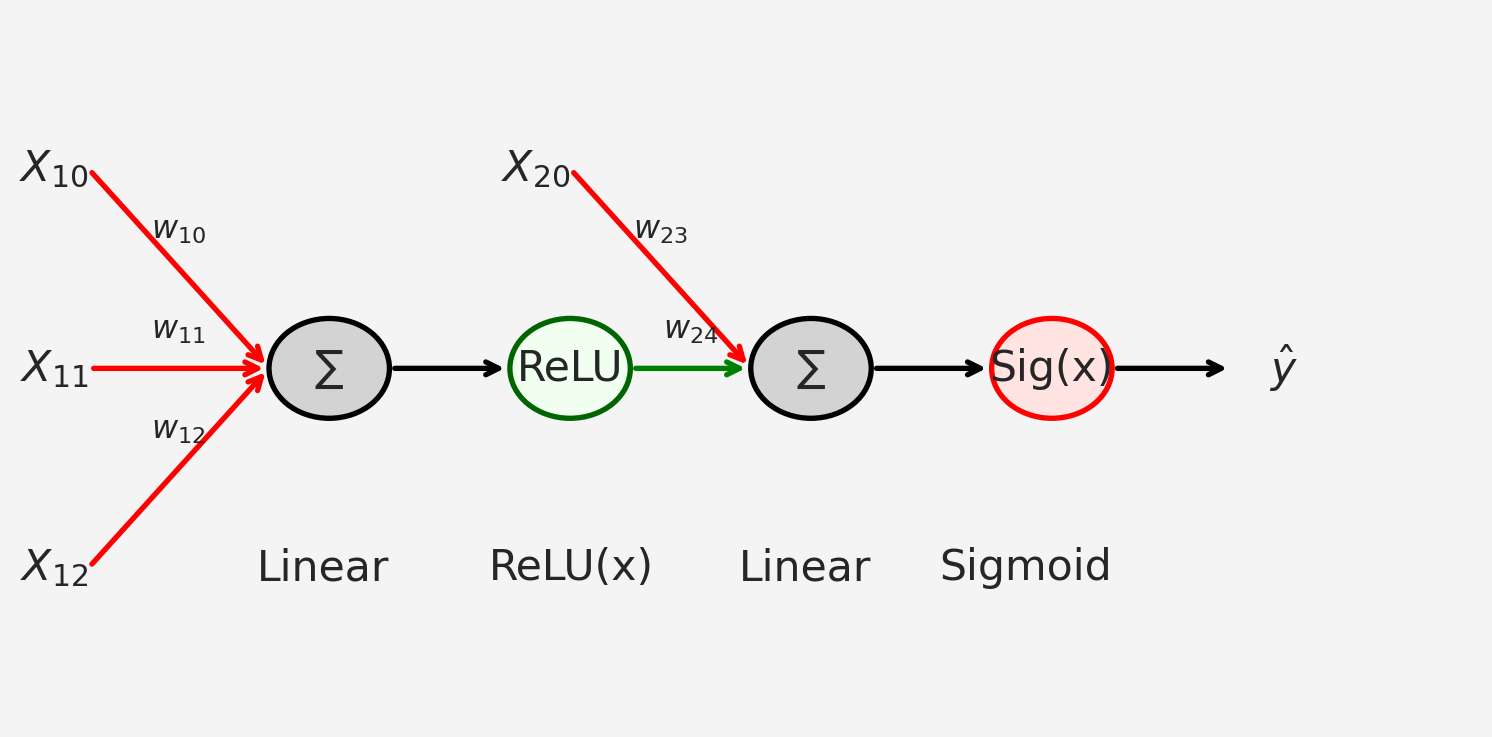

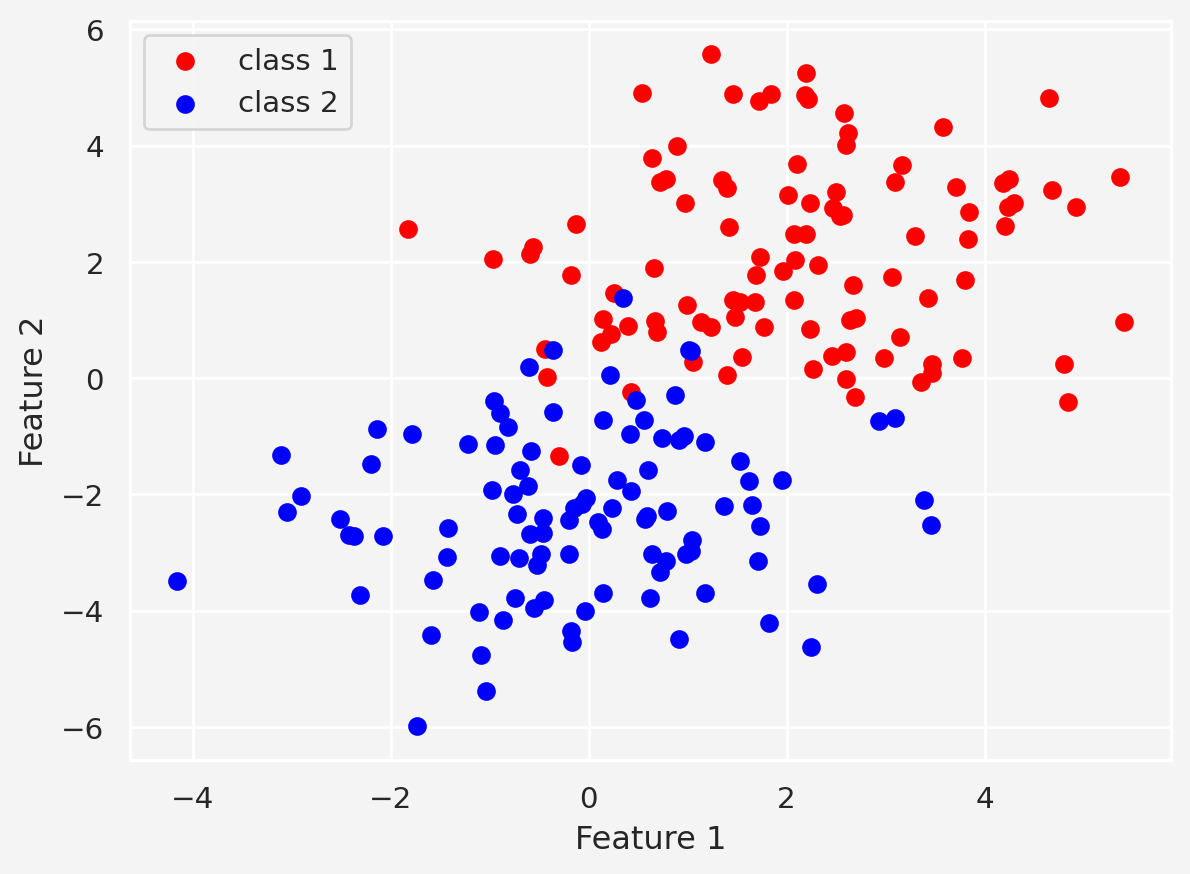

and we want to make an ANN classifier model with this data. So, we consider a two layer neural network
So our model
Now let’s train the model
lr = 0.01 # Learning Rate
loss_function = nn.BCELoss() # Binary Cross Entropy Loss
optimizer = torch.optim.SGD( # Stochastic Gradient Descent Optimizer
ANN_classifier.parameters(),
lr=lr
)
num_epochs = 1000 # Number of Epochs
# Define losses to store the loss from each epoch
losses = torch.zeros(num_epochs)
for epoch in range(num_epochs):
# Forward Pass
pred = ANN_classifier(data)
# Compute loss
loss = loss_function(pred, labels)
losses[epoch] = loss
# Backpropagation
optimizer.zero_grad()
loss.backward()
optimizer.step()

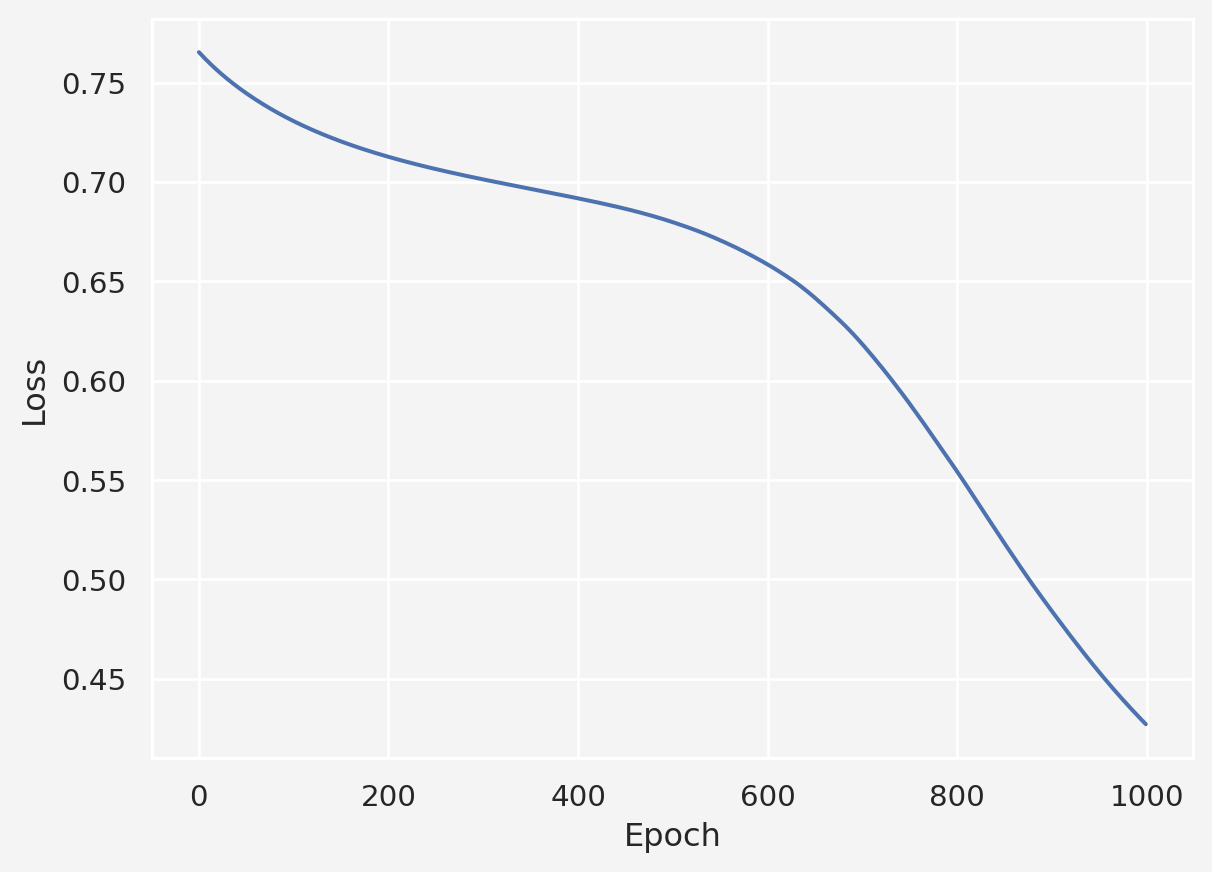

plt.plot(losses.detach())
plt.xlabel('Epoch')
plt.ylabel('Loss')
plt.show()

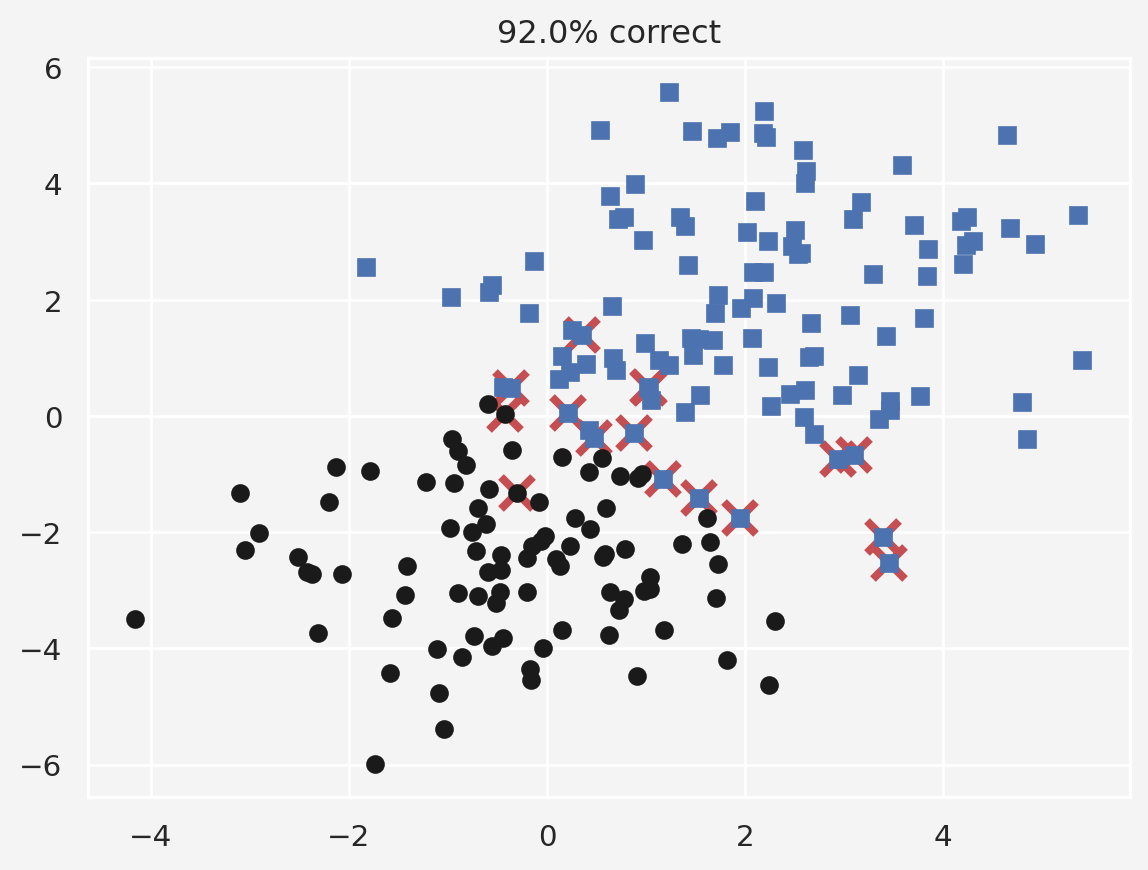

Next we compute the predictions made the model
preds = ANN_classifier(data)
predicted_labels = preds>0.5
mis_classification = np.where(predicted_labels != labels)[0]
acc = 100 - 100*len(mis_classification)/(2*100)
plt.plot(
data[mis_classification,0], data[mis_classification,1],
'rx', markersize=12, markeredgewidth=3
)
plt.plot(
data[np.where(~predicted_labels)[0],0],
data[np.where(~predicted_labels)[0],1],'bs'
)
plt.plot(
data[np.where(predicted_labels)[0],0],
data[np.where(predicted_labels)[0],1],'ko'
)
plt.title(f'{acc}% correct')
plt.show()

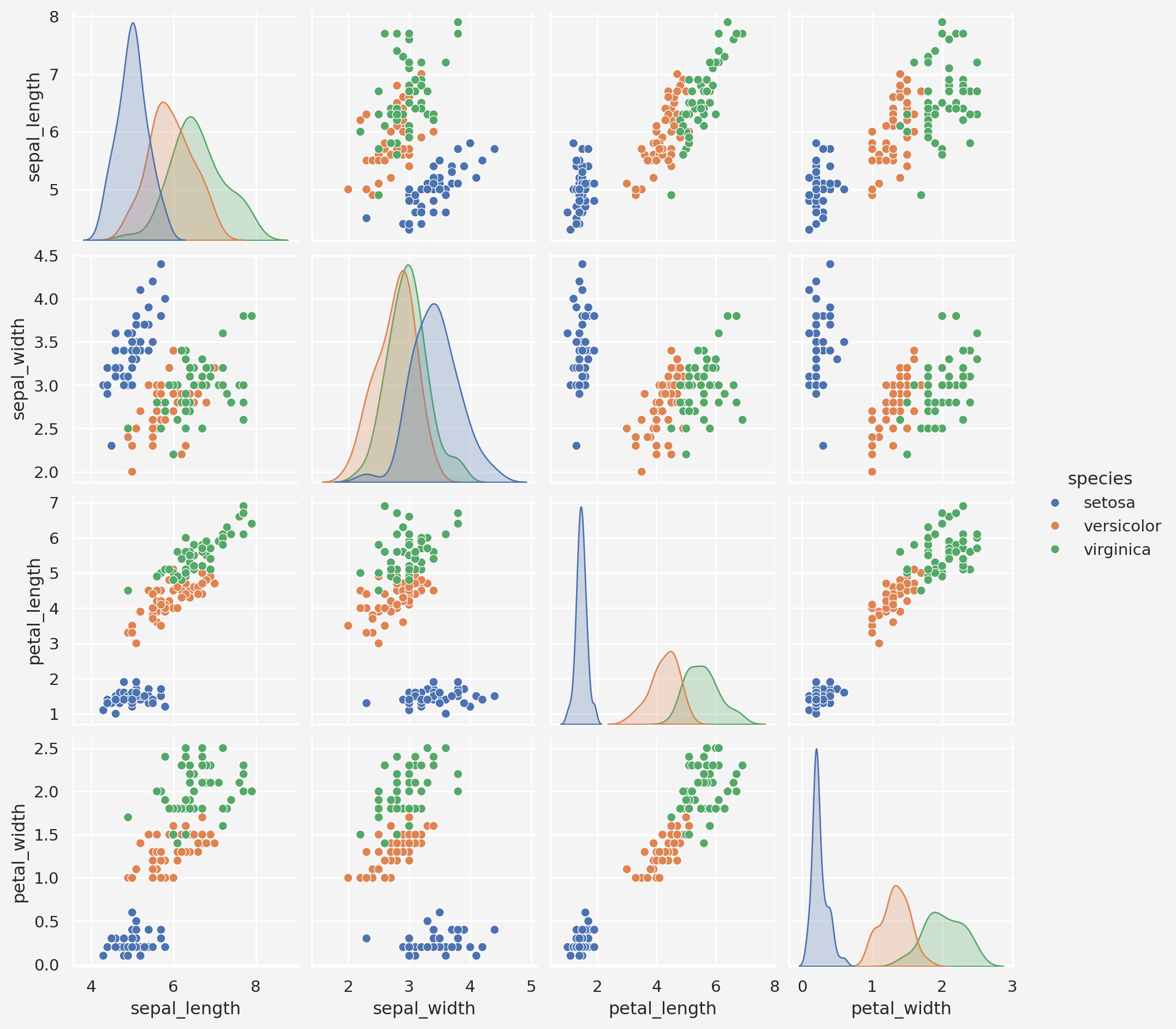

We use the IRIS data for this project
Model
Training
num_epochs = 1000
losses = torch.zeros(num_epochs)
running_acc = []
for epoch in range(num_epochs):
# forward pass
yhat = iris_classifier(data)
# compute loss
loss = loss_fun(yhat, labels)
losses[epoch] = loss
# back-prop
optimizer.zero_grad()
loss.backward()
optimizer.step()
# accuracy
matches = torch.argmax(yhat, axis=1)==labels
matchesNum = matches.float()
acc = 100*torch.mean(matchesNum)
running_acc.append(acc)

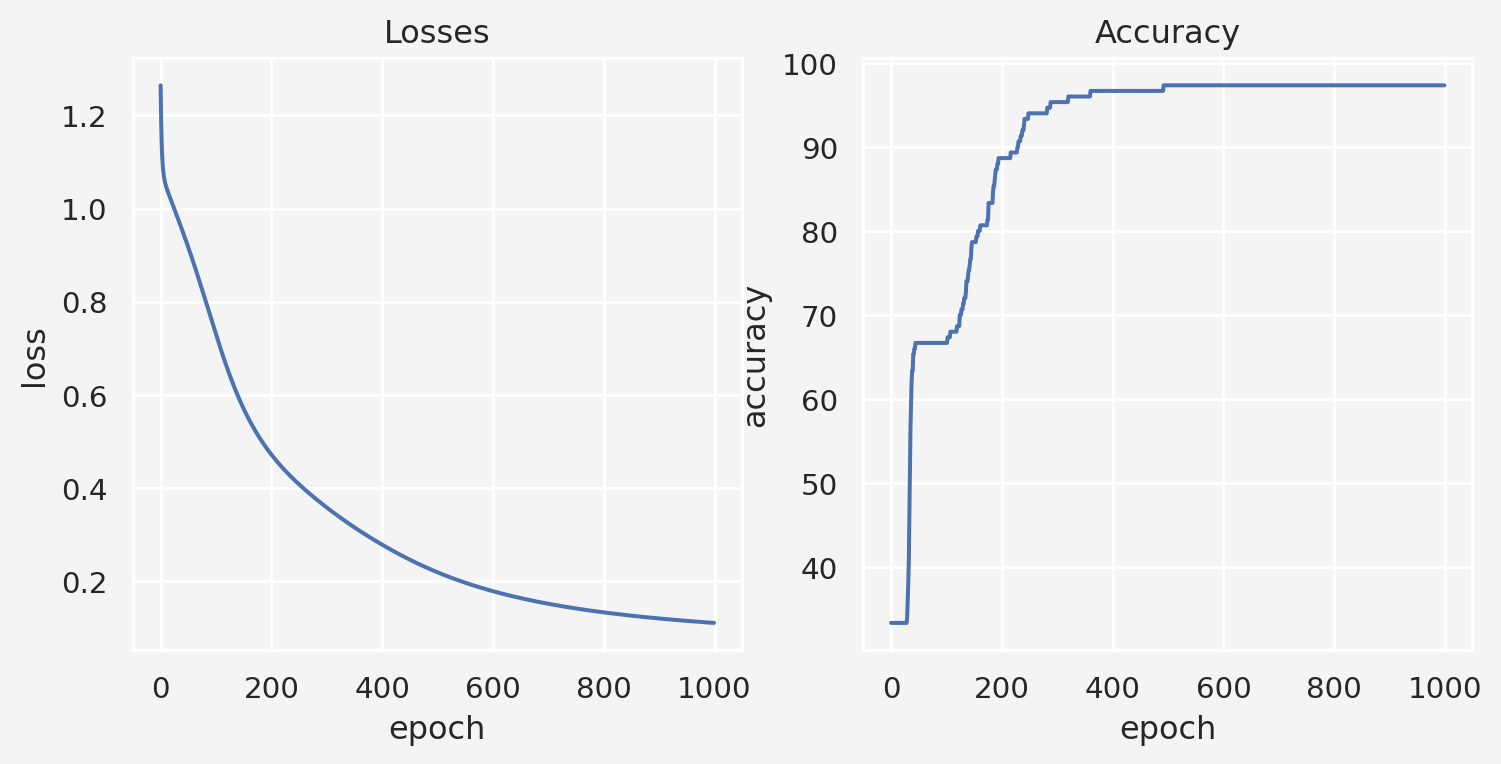

# Model prediction
preds = iris_classifier(data)
predicted_labels = torch.argmax(preds, axis=1)
totalacc = 100*torch.mean((predicted_labels==labels).float())
fig, ax = plt.subplots(1,2, figsize=(9,4))
ax[0].plot(losses.detach())
ax[0].set_ylabel('loss')
ax[0].set_xlabel('epoch')
ax[0].set_title('Losses')
ax[1].plot(running_acc)
ax[1].set_ylabel('accuracy')
ax[1].set_xlabel('epoch')
ax[1].set_title('Accuracy')
plt.show()
