Introduction

In machine learning, classification is one of the most common tasks, where the goal is to assign a label to an input from a set of possible categories. While binary classification, where there are only two labels (e.g., spam vs. not spam), is well understood, real-world problems often involve more than two classes—this is where multi-class classification comes into play. In this post, we’ll explore various techniques and algorithms used to solve multi-class classification problems effectively.

What is Multi-class Classification?

Multi-class classification involves assigning an input to one of several distinct classes. For instance, given an image of an animal, the task may be to classify it as either a dog, cat, horse, or bird. The key challenge here is to handle more than two classes, which introduces additional complexity compared to binary classification.

Key Approaches to Multi-class Classification

There are two main ways of handling multi-class classification:

  1. Native Multi-class Algorithms: Some algorithms are inherently designed to work with multiple classes without any modifications.
  2. Binary to Multi-class Strategies: These approaches decompose the multi-class problem into multiple binary classification problems.

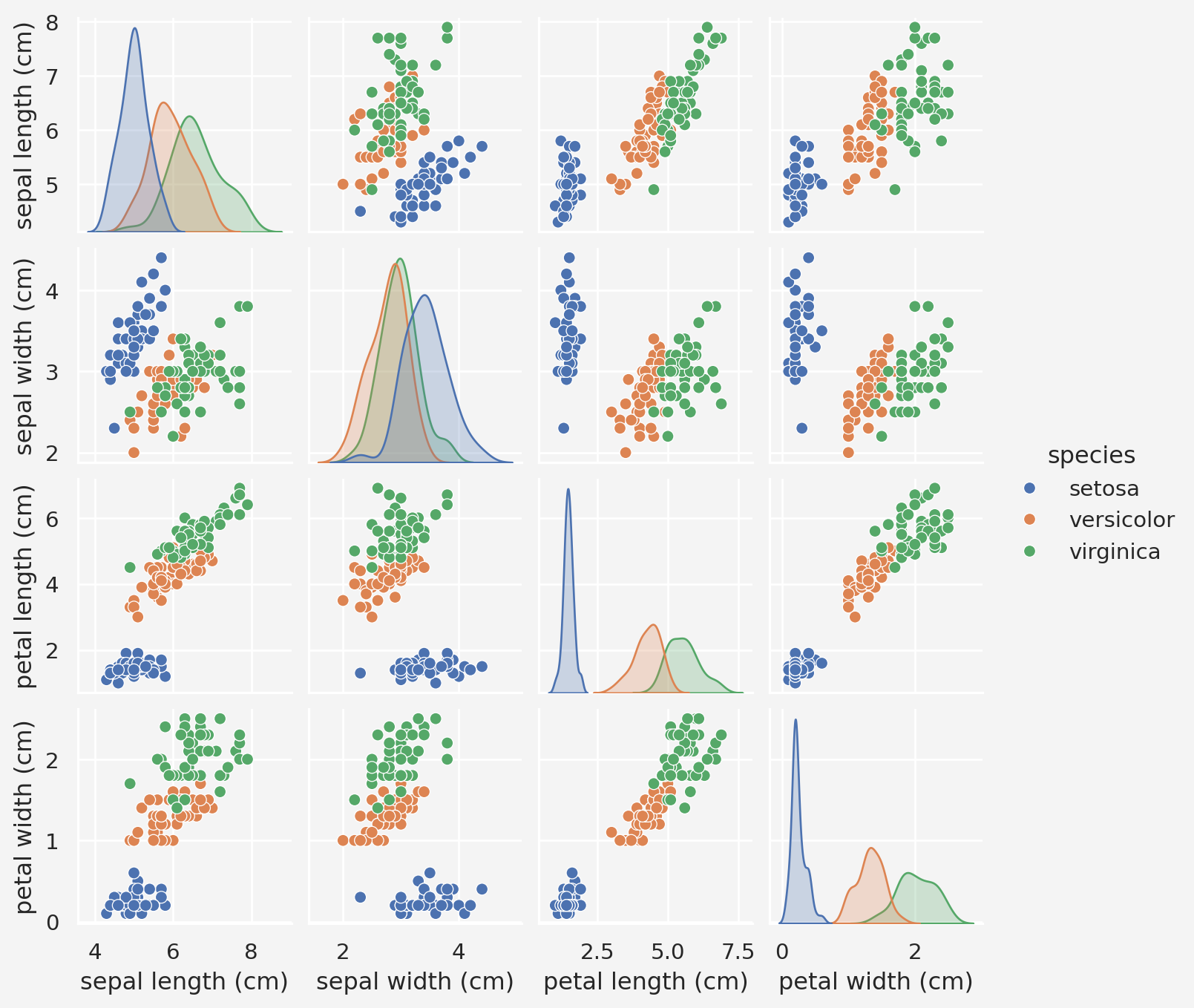

Let’s consider the classic Iris dataset that contains three classes of iris species: setosa, versicolor, virginica. We will use this dataset to demonstrate different multi-class classification techniques in python.

import pandas as pd
import numpy as np
from sklearn.datasets import load_iris
import seaborn as sns
import matplotlib.pyplot as plt

# set the background color
sns.set(rc={'axes.facecolor': '#f4f4f4', 'figure.facecolor':'#f4f4f4'})


iris = load_iris()
df = pd.DataFrame(data = iris.data, columns = iris.feature_names)
df['species'] = iris.target
df['species'] = df['species'].map({0: 'setosa', 1: 'versicolor', 2: 'virginica'})
print(df.head())
sns.pairplot(df, hue='species', height=1.8, aspect=0.99)
plt.show()
   sepal length (cm)  sepal width (cm)  petal length (cm)  petal width (cm)  \
0                5.1               3.5                1.4               0.2
1                4.9               3.0                1.4               0.2
2                4.7               3.2                1.3               0.2
3                4.6               3.1                1.5               0.2
4                5.0               3.6                1.4               0.2

  species
0  setosa
1  setosa
2  setosa
3  setosa
4  setosa

Native Multi-class Algorithms

These are algorithms that can directly handle multiple classes in their formulation:

a. Decision Trees (See more here)

Decision Trees can naturally handle multi-class classification tasks. At each split, the tree decides on a rule that best separates the data into groups. The terminal nodes (leaves) represent the class predictions.

  • Advantages: Easy to interpret, no need for extensive pre-processing, and handles both categorical and numerical features.
  • Disadvantages: Prone to overfitting and can produce unstable models if not carefully tuned.
from sklearn.tree import DecisionTreeClassifier
from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report

X_train, X_test, y_train, y_test = train_test_split(
    iris.data,
    iris.target,
    test_size=0.3,
    random_state=123
    )
clf = DecisionTreeClassifier()
clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)

print(classification_report(y_test, y_pred, target_names=iris.target_names))
              precision    recall  f1-score   support

      setosa       1.00      1.00      1.00        18
  versicolor       0.77      1.00      0.87        10
   virginica       1.00      0.82      0.90        17

    accuracy                           0.93        45
   macro avg       0.92      0.94      0.92        45
weighted avg       0.95      0.93      0.93        45

b. Random Forests (See more here)

Random Forests are ensembles of decision trees and can also naturally handle multi-class classification. They aggregate the predictions from multiple trees to make a final classification decision.

  • Advantages: Higher accuracy and reduced overfitting compared to single decision trees.
  • Disadvantages: Less interpretable than individual trees, and training can be computationally intensive.
from sklearn.ensemble import RandomForestClassifier

clf = RandomForestClassifier()
clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)

print(classification_report(y_test, y_pred, target_names=iris.target_names))
              precision    recall  f1-score   support

      setosa       1.00      1.00      1.00        18
  versicolor       0.83      1.00      0.91        10
   virginica       1.00      0.88      0.94        17

    accuracy                           0.96        45
   macro avg       0.94      0.96      0.95        45
weighted avg       0.96      0.96      0.96        45

c. Naive Bayes (See more here)

Naive Bayes is a probabilistic classifier based on Bayes’ theorem, assuming that the features are independent. The algorithm calculates the probability of each class and predicts the one with the highest probability.

  • Advantages: Fast, simple, and works well for text classification.
  • Disadvantages: Assumes feature independence, which might not hold in many real-world datasets.
from sklearn.naive_bayes import MultinomialNB

clf = MultinomialNB()
clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)

print(classification_report(y_test, y_pred, target_names=iris.target_names))
              precision    recall  f1-score   support

      setosa       1.00      1.00      1.00        18
  versicolor       0.37      1.00      0.54        10
   virginica       0.00      0.00      0.00        17

    accuracy                           0.62        45
   macro avg       0.46      0.67      0.51        45
weighted avg       0.48      0.62      0.52        45

/opt/hostedtoolcache/Python/3.10.21/x64/lib/python3.10/site-packages/sklearn/metrics/_classification.py:1731: UndefinedMetricWarning: Precision is ill-defined and being set to 0.0 in labels with no predicted samples. Use `zero_division` parameter to control this behavior.
  _warn_prf(average, modifier, f"{metric.capitalize()} is", result.shape[0])
/opt/hostedtoolcache/Python/3.10.21/x64/lib/python3.10/site-packages/sklearn/metrics/_classification.py:1731: UndefinedMetricWarning: Precision is ill-defined and being set to 0.0 in labels with no predicted samples. Use `zero_division` parameter to control this behavior.
  _warn_prf(average, modifier, f"{metric.capitalize()} is", result.shape[0])
/opt/hostedtoolcache/Python/3.10.21/x64/lib/python3.10/site-packages/sklearn/metrics/_classification.py:1731: UndefinedMetricWarning: Precision is ill-defined and being set to 0.0 in labels with no predicted samples. Use `zero_division` parameter to control this behavior.
  _warn_prf(average, modifier, f"{metric.capitalize()} is", result.shape[0])

d. K-Nearest Neighbors (KNN) (See more here)

KNN is a non-parametric algorithm that classifies a data point based on the majority class of its k-nearest neighbors. It can handle multi-class problems by considering the most frequent class among the neighbors.

  • Advantages: Simple to implement, no training phase.
  • Disadvantages: Slow at prediction time, sensitive to the choice of k and the distance metric.
from sklearn.neighbors import KNeighborsClassifier

clf = KNeighborsClassifier(n_neighbors=5)
clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)

print(classification_report(y_test, y_pred, target_names=iris.target_names))
              precision    recall  f1-score   support

      setosa       1.00      1.00      1.00        18
  versicolor       1.00      0.90      0.95        10
   virginica       0.94      1.00      0.97        17

    accuracy                           0.98        45
   macro avg       0.98      0.97      0.97        45
weighted avg       0.98      0.98      0.98        45

Binary to Multi-class Strategies

Some algorithms are inherently binary, but they can be adapted to handle multiple classes using strategies like:

a. One-vs-Rest (OvR)

This technique involves training one classifier per class. Each classifier is trained to distinguish one class from the rest (i.e., treat it as a binary classification problem). During prediction, the classifier that outputs the highest confidence score assigns the label.

  • Advantages: Simple and works well with many binary classifiers like logistic regression and support vector machines.
  • Disadvantages: Can become inefficient when there are many classes, since it requires training one model per class.

Example with Logistic Regression

from sklearn.linear_model import LogisticRegression
from sklearn.multiclass import OneVsRestClassifier

clf = OneVsRestClassifier(LogisticRegression())
clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)

print(classification_report(y_test, y_pred, target_names=iris.target_names))
              precision    recall  f1-score   support

      setosa       1.00      1.00      1.00        18
  versicolor       0.83      1.00      0.91        10
   virginica       1.00      0.88      0.94        17

    accuracy                           0.96        45
   macro avg       0.94      0.96      0.95        45
weighted avg       0.96      0.96      0.96        45

b. One-vs-One (OvO)

This strategy involves training a binary classifier for every possible pair of classes. For a dataset with \(n\) classes, \(\frac{n(n-1)}{2}\) classifiers are trained. The class with the most “votes” from the classifiers is the predicted label.

  • Advantages: Works well when there are fewer classes.
  • Disadvantages: Computationally expensive for large class numbers due to the many classifiers needed.

Example with support vector classifier

from sklearn.multiclass import OneVsOneClassifier
from sklearn.svm import SVC

clf = OneVsOneClassifier(SVC())
clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)

print(classification_report(y_test, y_pred, target_names=iris.target_names))
              precision    recall  f1-score   support

      setosa       1.00      1.00      1.00        18
  versicolor       0.71      1.00      0.83        10
   virginica       1.00      0.76      0.87        17

    accuracy                           0.91        45
   macro avg       0.90      0.92      0.90        45
weighted avg       0.94      0.91      0.91        45

3. Neural Networks for Multi-class Classification

a. Softmax Regression

In neural networks, multi-class classification is typically handled using the softmax function in the output layer. Softmax converts raw output scores (logits) into probabilities for each class, ensuring they sum to 1. The class with the highest probability is chosen as the predicted class.

  • Advantages: Can model complex non-linear relationships and works well with large datasets.
  • Disadvantages: Requires more data and computational resources compared to simpler models.
import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Input
from tensorflow.keras.optimizers import SGD

input_layer = Input(shape = (X_train.shape[1],))

model = Sequential([
    input_layer,
    Dense(64, activation = 'relu'),

    Dense(64, activation = 'relu'),

    Dense(3, activation = 'softmax')
])

optimizer = SGD(learning_rate=0.001)
model.compile(
    optimizer = optimizer,
    loss = 'sparse_categorical_crossentropy',
    metrics = ['accuracy']
    )
model.fit(X_train, y_train, epochs = 50, batch_size = 10, verbose = 0)
test_loss, accuracy = model.evaluate(X_test, y_test)
print(f'Test Accuracy: {accuracy}')
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1787367710.110512    4642 cudart_stub.cc:31] Could not find cuda drivers on your machine, GPU will not be used.
I0000 00:00:1787367710.152896    4642 cpu_feature_guard.cc:227] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1787367711.852255    4642 cudart_stub.cc:31] Could not find cuda drivers on your machine, GPU will not be used.
E0000 00:00:1787367712.027418    4642 cuda_platform.cc:52] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: UNKNOWN ERROR (303)
1/2 ━━━━━━━━━━━━━━━━━━━━ 0s 89ms/step - accuracy: 0.8750 - loss: 0.6752

2/2 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8444 - loss: 0.6802

Test Accuracy: 0.8444444537162781

Training and Validation loss

X_train, X_val, y_train, y_val = train_test_split(
    X_train, y_train, test_size=0.10, random_state=123,
    stratify=y_train
)

history = model.fit(
    X_train, y_train, epochs = 150,
    batch_size = 10, verbose = 0,
    validation_data = (X_val, y_val)
    )

train_loss = history.history['loss']
val_loss = history.history['val_loss']

epochs = range(1, len(train_loss)+1)
plt.plot(epochs, train_loss, 'b-', label = "Training Loss")
plt.plot(epochs, val_loss, 'r-', label = "Validation loss")
plt.title('Training and Validation loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.legend()
plt.show()

b. Convolutional Neural Networks (CNNs)

For image classification tasks, CNNs are widely used. CNNs automatically learn spatial hierarchies of features, making them highly effective for tasks like object recognition in images.

  • Advantages: Superior performance on image data, able to capture spatial dependencies.
  • Disadvantages: Require large amounts of labeled data and significant computational power for training.

Performance Evaluation in Multi-class Classification

Evaluating multi-class classification models requires more nuanced metrics than binary classification. Some common evaluation metrics include:

  • Accuracy: The percentage of correctly classified instances.

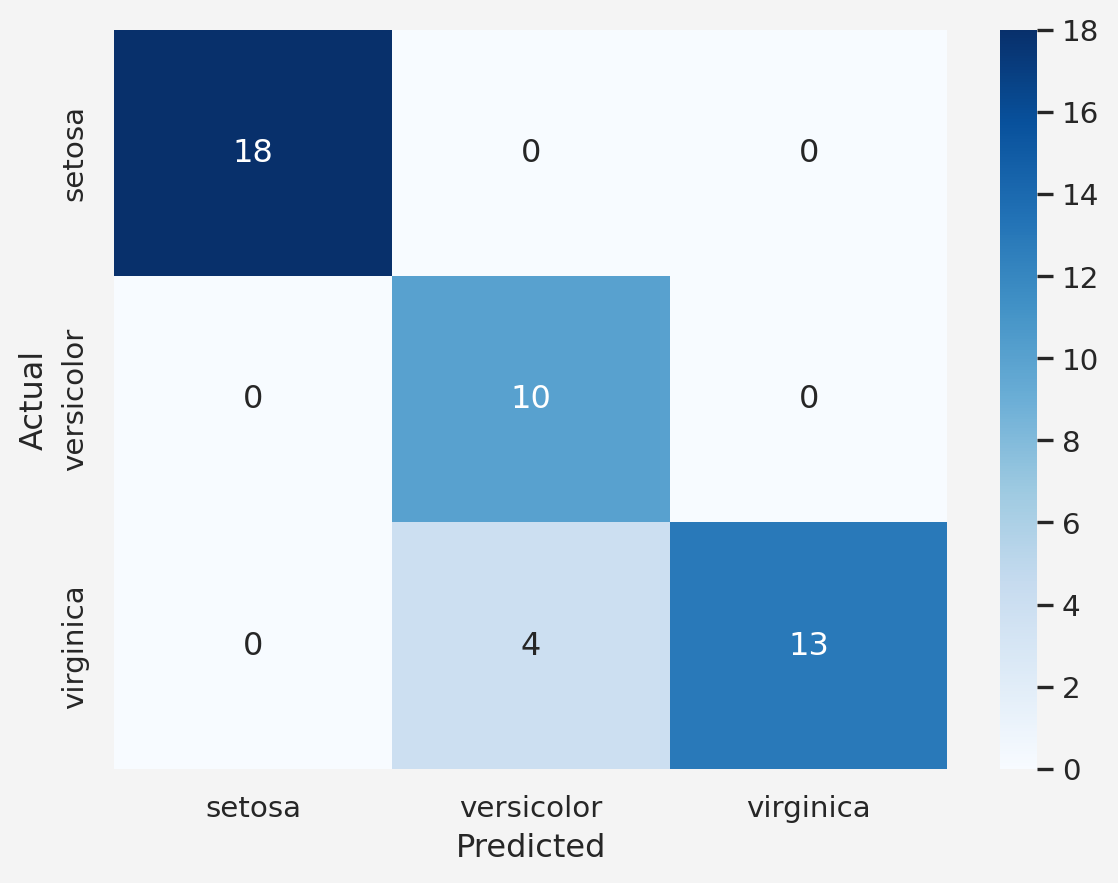

  • Confusion Matrix: A table showing the actual versus predicted classes for each class.
  • Precision, Recall, and F1-score: These can be extended to multiple classes by calculating them per class (micro, macro, or weighted averages).
  • Receiver Operating Characteristic (ROC) and Area Under the Curve (AUC): These are less commonly used for multi-class problems, but can still be adapted using OvR schemes.
from sklearn.metrics import confusion_matrix

cm = confusion_matrix(y_test, y_pred)
sns.heatmap(
    cm, annot=True, fmt='d', cmap='Blues',
    xticklabels=iris.target_names,
    yticklabels=iris.target_names
)
plt.xlabel('Predicted')
plt.ylabel('Actual')
plt.show()

Conclusion

Multi-class classification is a critical aspect of many real-world applications, from medical diagnosis to image recognition and beyond. By understanding the strengths and limitations of different algorithms and strategies, we can choose the best approach for the task at hand. Whether using native multi-class models like decision trees or adapting binary models with OvR or OvO strategies, it’s essential to carefully consider the nature of the data, the number of classes, and computational constraints when building the models.

References

  1. Scikit-learn Documentation:
    The Python code snippets for decision trees, random forests, KNN, logistic regression, and support vector machines (SVM) are based on the Scikit-learn library.
  2. Iris Dataset:
    The Iris dataset is a well-known dataset for classification tasks and is included in the UCI Machine Learning Repository:
  3. Confusion Matrix & Evaluation Metrics:
    For metrics such as accuracy, precision, recall, F1-score, and confusion matrices, the Scikit-learn library offers comprehensive functions to evaluate multi-class classification models:
  4. Softmax and Neural Networks:
    The Python code for neural networks using TensorFlow/Keras employs the softmax function for multi-class classification.
  5. Introduction to Multi-class Classification:
    General information about multi-class classification can be found in machine learning books and resources, such as “Hands-On Machine Learning with Scikit-Learn, Keras, and TensorFlow” by Aurélien Géron:

Share on

You may also like

Back to top

Citation

BibTeX citation:
@online{islam2024,
  author = {Islam, Rafiq},
  title = {Classification: {Techniques} to Handle Multi-Class
    Classification Problems},
  date = {2024-10-17},
  url = {https://rispace.github.io/posts/multiclass/},
  langid = {en}
}
For attribution, please cite this work as:
Islam, Rafiq. 2024. “Classification: Techniques to Handle Multi-Class Classification Problems.” October 17. https://rispace.github.io/posts/multiclass/.
